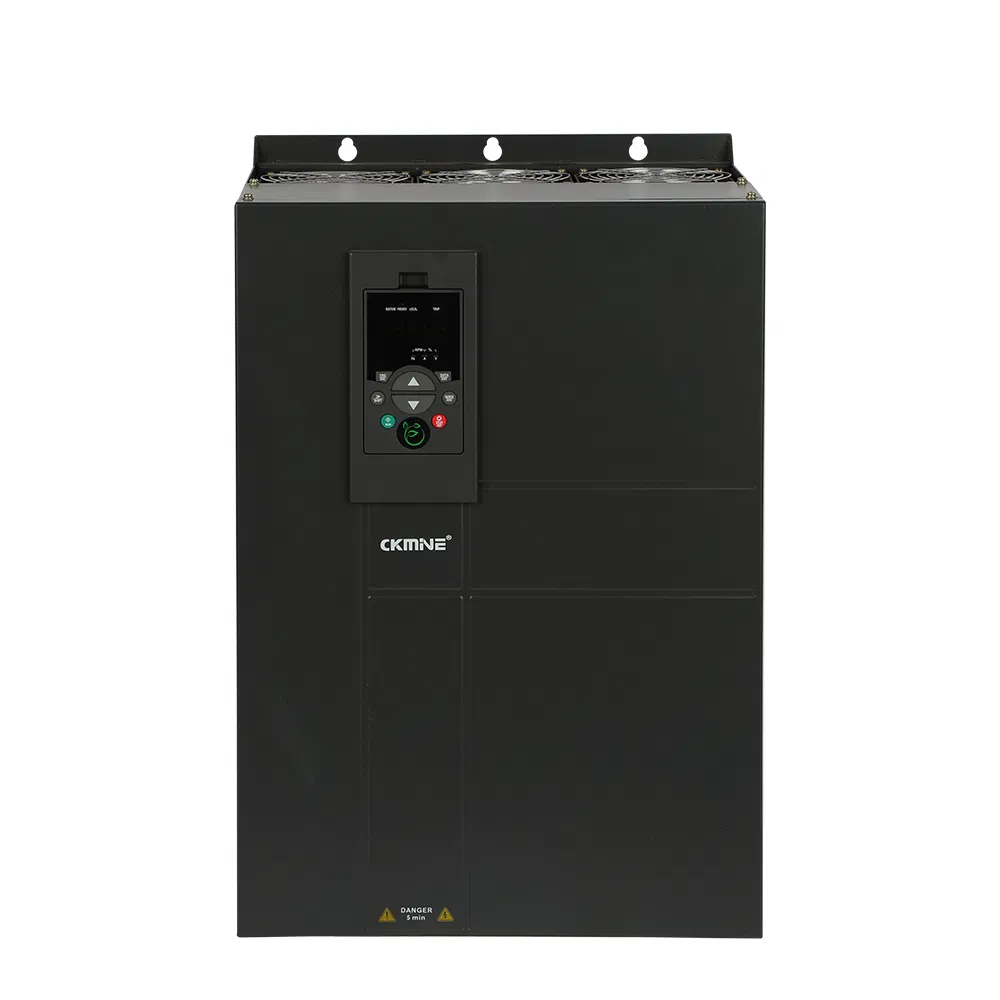

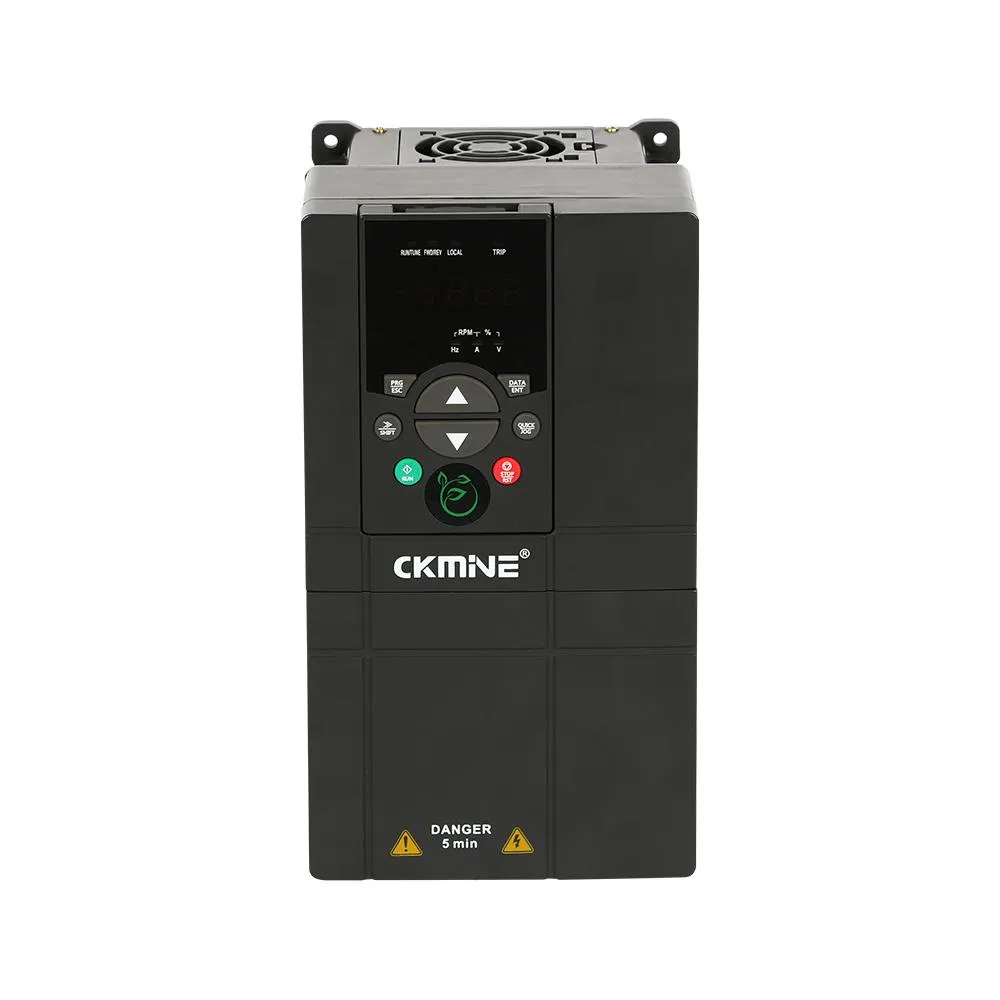

General Purpose VFD Km800 Boosting Industrial Development with Efficient Drive

Basic Specifications

Model NO. KM800-030G-4

Principle of Work V/F Control Transducer

Switch Mode PWM Control

Main Circuit Type Voltage

Power Supply Low Voltage Variable-Frequency Drive

Transformation AC-DC-AC Drive

Function Elevator Special, Textile Special

Specification 30KW-400V-60Amp

HS Code 8504409999

Production Capacity 40,000 Units

Product Features

✓ Support motor power range from 0.75kw to 500kw.

✓ Static and accurate auto-tuning for convenient debugging and operation.

✓ Excellent anti-trip performance and high adaptability to harsh environments (temperature, humidity, dust).

✓ Advanced vector control with perfect voltage and current control technology.

✓ Supports common DC bus schemes for DC power supply modes.

✓ Comprehensive EMC compatibility design for low noise and minimal interference.

Technical Parameters

KM800 Series Technical Data
Product Name	General Frequency Inverter
Model No.	KM800-1R5G-4
Rated Power	30KW-400V-60Amp
Output Frequency	0-400Hz
Output Voltage	380V(-15%)~440V(+10%) 3-Phase
Output Type	3 Phase
AC Input Voltage	380V(-15%)~440V(+10%) 3-Phase
Input Frequency	50-60Hz
Control Mode	V/F, SVC, FCV

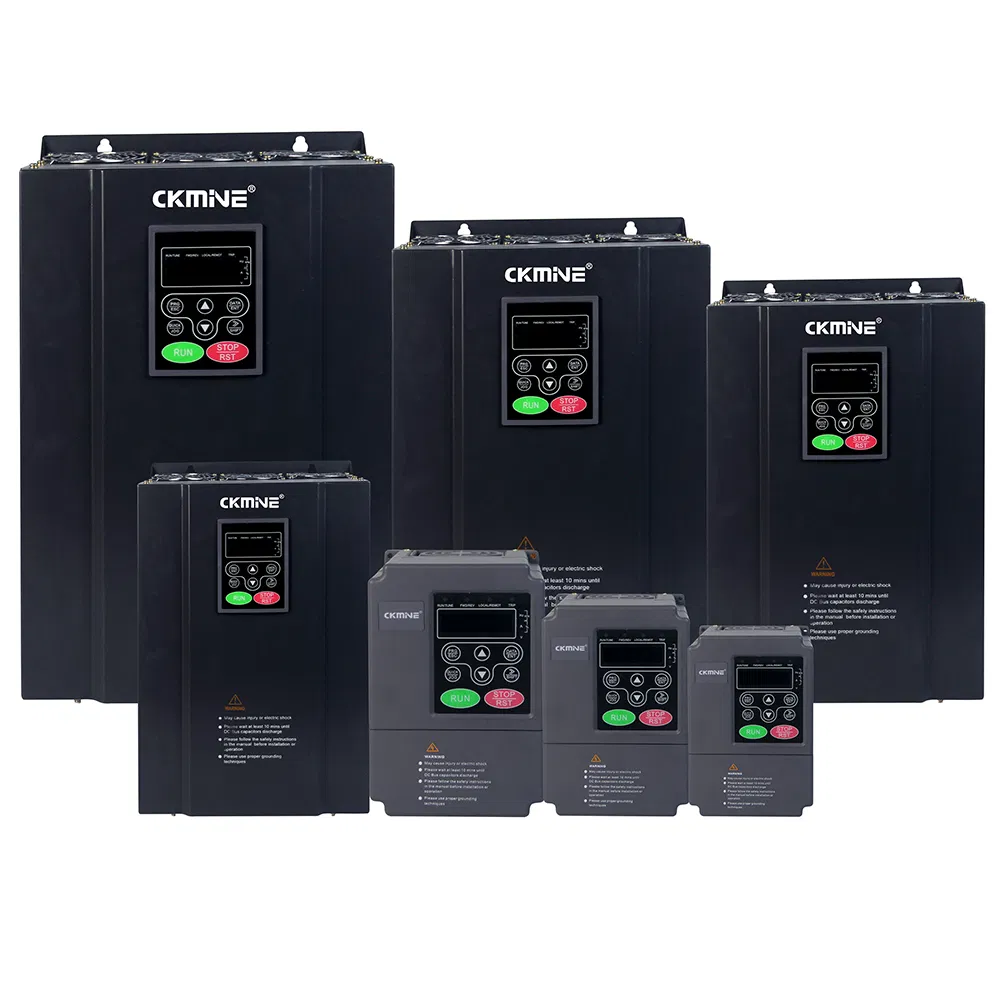

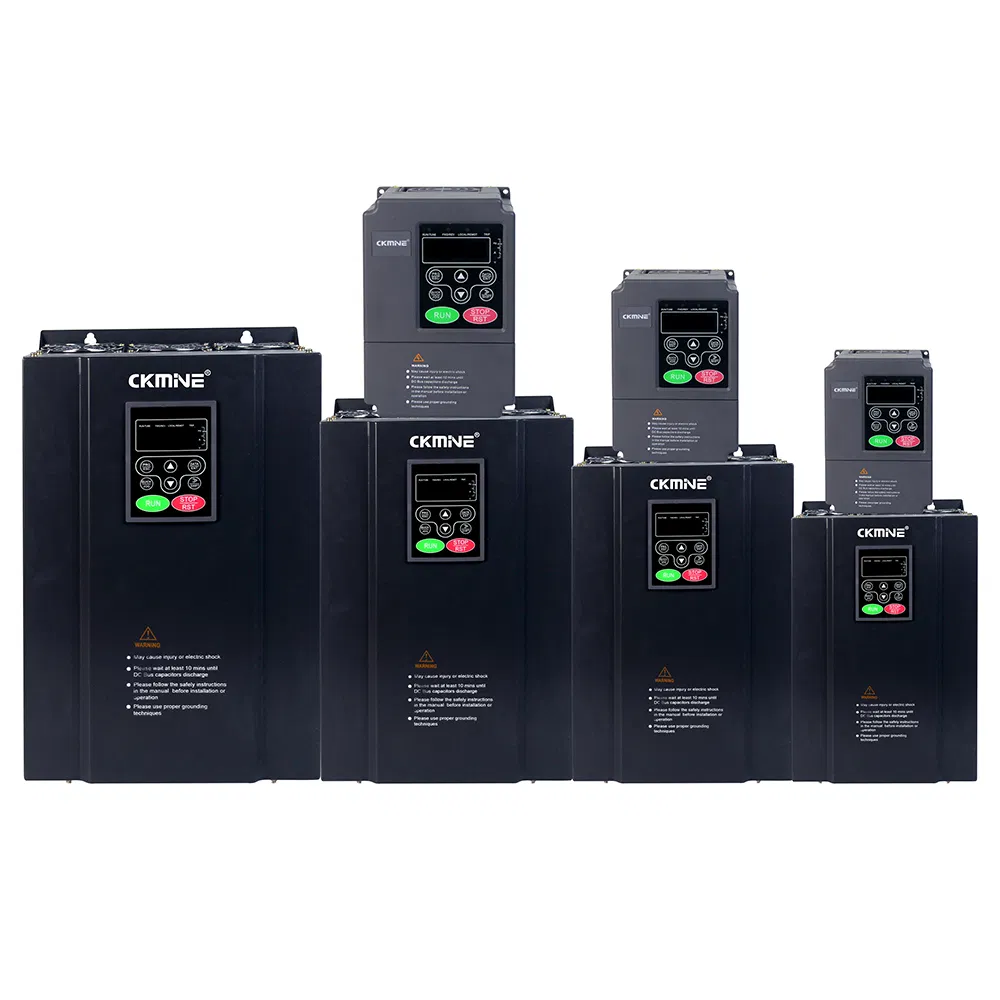

Product Gallery

Frequently Asked Questions

Q1: What is the applicable motor power range for the KM800 series? A1: The KM800 series supports a wide power range from 0.75kw up to 500kw, making it suitable for various industrial applications.

Q2: Can this inverter be used in environments with high dust or humidity? A2: Yes, it features excellent adaptability to harsh conditions, including high temperature, humidity, and dust, ensuring high product reliability.

Q3: Which control modes are supported by this VFD? A3: The KM800 series supports V/F control, SVC (Sensorless Vector Control), and FCV (Flux Control Vectoring) modes.

Q4: Does the KM800 support DC power supply? A4: Yes, it supports a common DC bus scheme, making it compatible with DC power supply modes.

Q5: What are the primary industry applications for this model? A5: While it is a general-purpose inverter, it is specifically optimized for Elevator and Textile industry applications.

Q6: What is the output frequency range of the KM800? A6: The device provides an output frequency range of 0 to 400Hz.
